DetailedIDER318

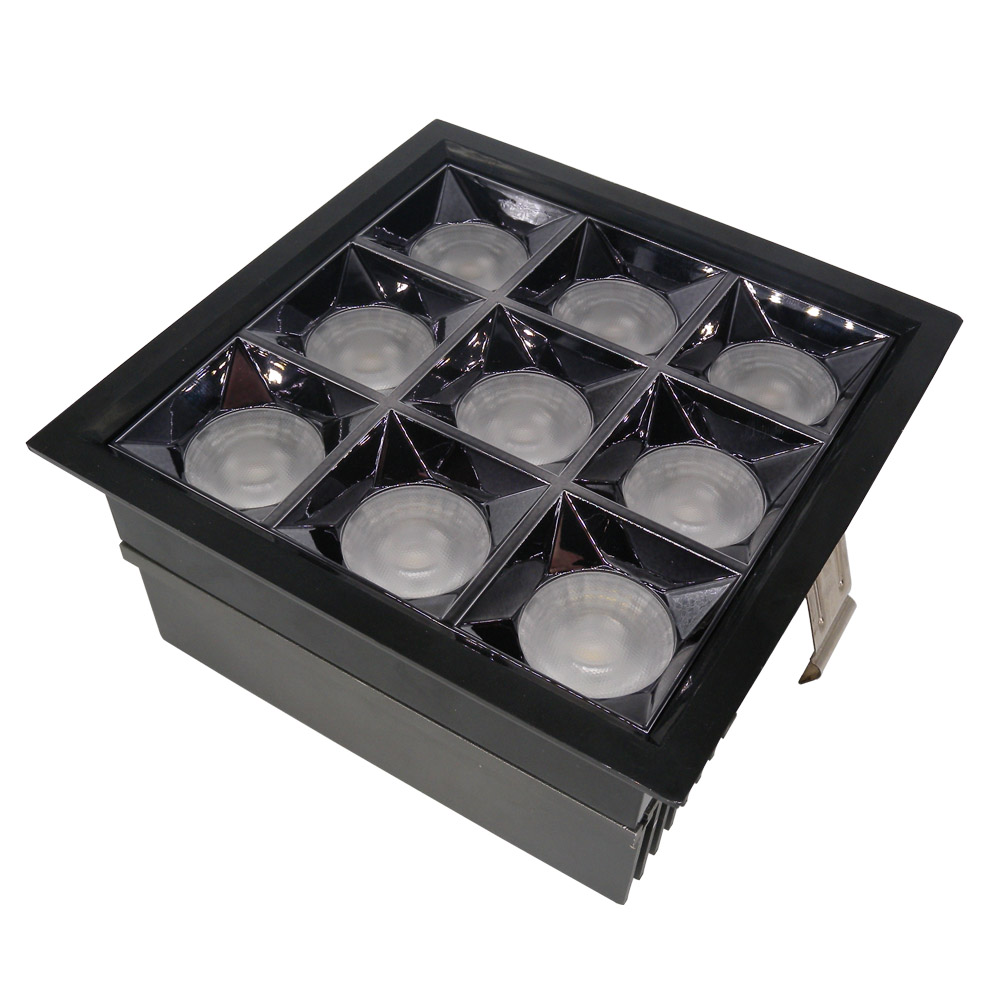

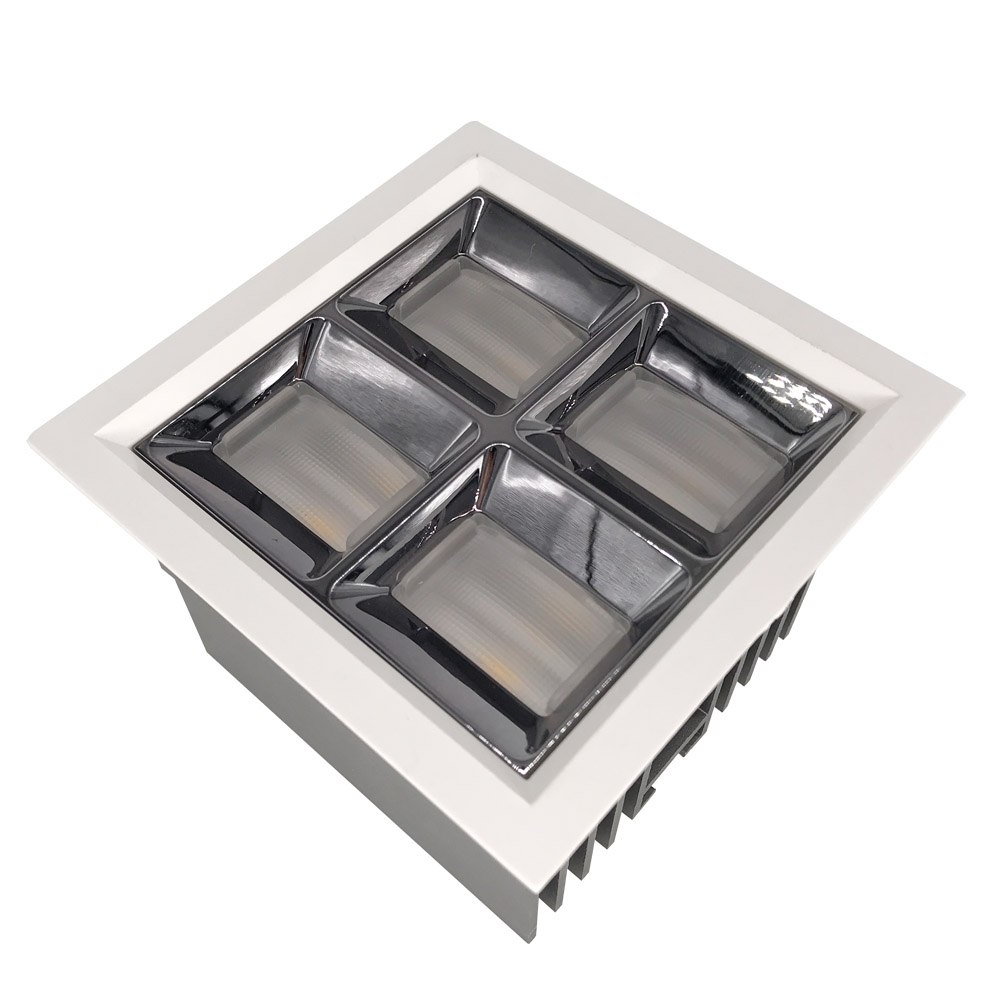

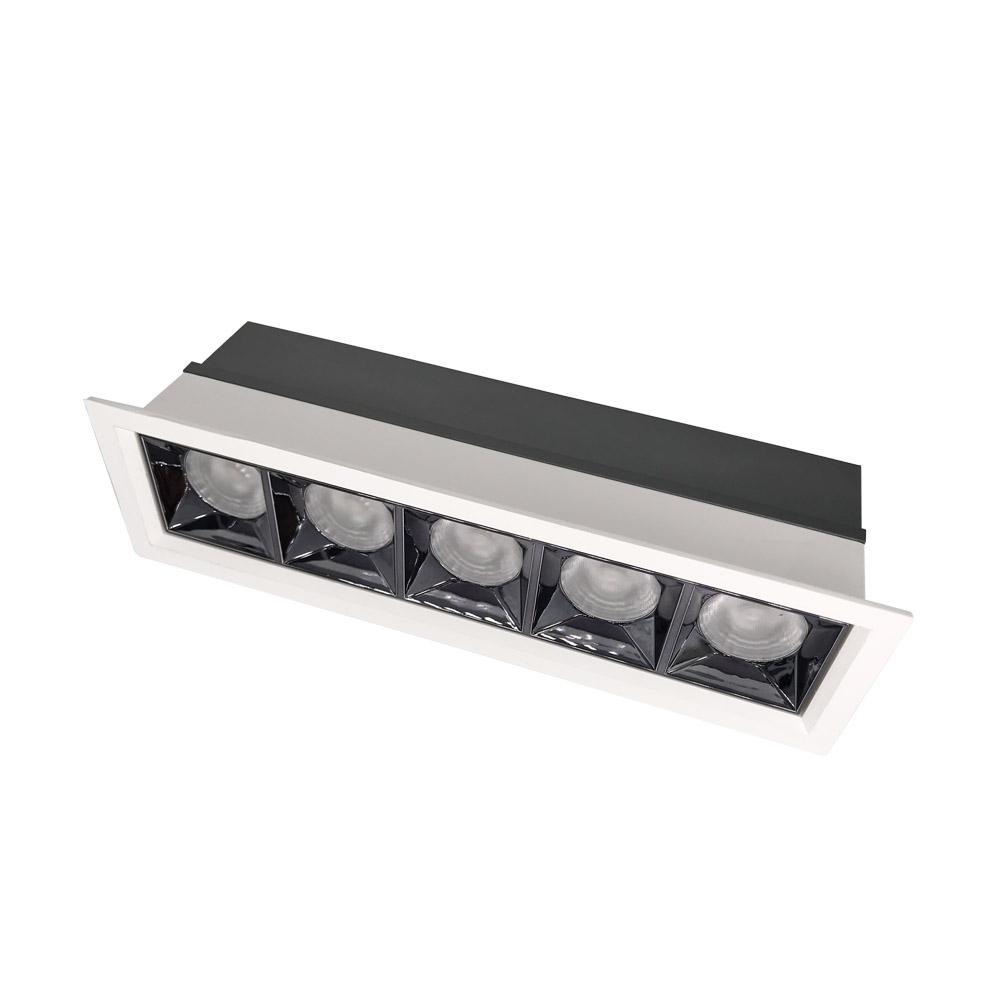

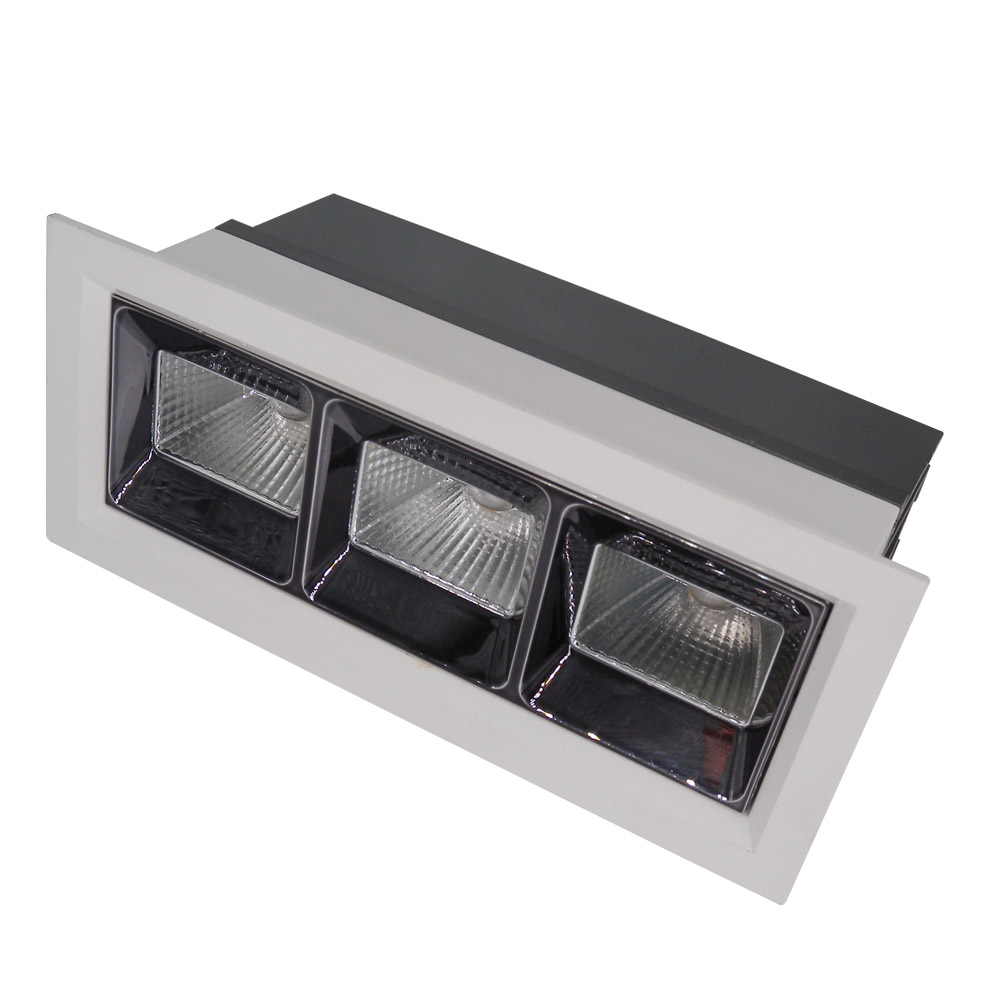

| ◆ LED Downlight used in directional local lighting places.
◆ Designed in accordance with international and industry standards. ◆ Light source with high quality COB LED. ◆ Light body using aluminum alloy materials. ◆ Optical components using high efficiency reflector cup, you can choose different beam angles. ◆ Thermal structure design and reasonable. ◆ Driver no flicker, quick start. | ||||
| Model(型号) | IDER318-15W | IDER318-20W | IDER318-25W | IDER318-40W |
| Input Voltage (输入电压) | AC160-240V | |||
| Power (LED 功率) | 15W | 20W | 25W | 40W |
| LED | Bridgelux | |||
| Dimension (尺寸）/mm | 135x58x68 | 95x95x68 | 210x58x68 | 135x135x68 |
| Cut-out（开孔）/mm | 125x48 | 85x85 | 200x48 | 125x125 |
| CCT (色温) | 3000-6000K | |||
| Beam angle （光束角） | 15°, 24°, 38°, 50°, 75°, 35°x75°, 50°x50°, oval, polarized light | |||
| Material（材质） | Plastic frame + aluminum heatsink | |||
